๐บ EOmaps examples๏
โฆ a collection of examples that show how to create beautiful interactive maps.
๐ฃ Quickly visualize your data๏
There are 3 basic steps required to visualize your data:
Initialize a Maps-object with
m = Maps()
Set the data and its specifications via
m.set_data
(orm.set_data_specs
)Call
m.plot_map()
to generate the map!
# EOmaps: A simple map
from eomaps import Maps
import pandas as pd
import numpy as np
# ----------- create some example-data
lon, lat = np.meshgrid(np.arange(-20, 40, 0.25), np.arange(30, 60, 0.25))
data = pd.DataFrame(
dict(lon=lon.flat, lat=lat.flat, data_variable=np.sqrt(lon**2 + lat**2).flat)
)
data = data.sample(15000) # take 15000 random datapoints from the dataset
# ------------------------------------
m = Maps(crs=4326)
m.add_feature.preset.ocean()
m.add_feature.preset.coastline()
m.set_data(
data=data, # a pandas-DataFrame holding the data & coordinates
parameter="data_variable", # the DataFrame-column you want to plot
x="lon", # the name of the DataFrame-column representing the x-coordinates
y="lat", # the name of the DataFrame-column representing the y-coordinates
crs=4326, # the coordinate-system of the x- and y- coordinates
)
m.plot_map()
m.add_colorbar(label="A dataset")
c = m.add_compass((0.05, 0.86), scale=7, patch=None)
m.cb.pick.attach.annotate() # attach a pick-annotation (on left-click)
m.add_logo() # add a logo
๐ Data-classification and multiple Maps in one figure๏
Create grids of maps via
MapsGrid
- Classify your data via
m.set_classify_specs(scheme, **kwargs)
(using classifiers provided by themapclassify
module) - Add individual callback functions to each subplot via
m.cb.click.attach
,m.cb.pick.attach
- Share events between Maps-objects of the MapsGrid via
mg.share_click_events()
andmg.share_pick_events()
# EOmaps example 2: Data-classification and multiple Maps in one figure
from eomaps import Maps
import pandas as pd
import numpy as np
# ----------- create some example-data
lon, lat = np.meshgrid(np.arange(-20, 40, 0.5), np.arange(30, 60, 0.5))
data = pd.DataFrame(
dict(lon=lon.flat, lat=lat.flat, data_variable=np.sqrt(lon**2 + lat**2).flat)
)
data = data.sample(4000) # take 4000 random datapoints from the dataset
# ------------------------------------
# initialize a grid of Maps objects
m = Maps(ax=131, crs=4326, figsize=(11, 5))
m2 = Maps(f=m.f, ax=132, crs=Maps.CRS.Stereographic())
m3 = Maps(f=m.f, ax=133, crs=3035)
# --------- set specs for the first map
m.text(0.5, 1.1, "epsg=4326", transform=m.ax.transAxes)
m.set_classify_specs(scheme="EqualInterval", k=10)
# --------- set specs for the second map
m2.text(0.5, 1.1, "Stereographic", transform=m2.ax.transAxes)
m2.set_shape.rectangles()
m2.set_classify_specs(scheme="Quantiles", k=8)
# --------- set specs for the third map
m3.text(0.5, 1.1, "epsg=3035", transform=m3.ax.transAxes)
m3.set_classify_specs(
scheme="StdMean",
multiples=[-1, -0.75, -0.5, -0.25, 0.25, 0.5, 0.75, 1],
)
# --------- plot all maps and add colorbars to all maps
# set the data on ALL maps-objects of the grid
for m_i in [m, m2, m3]:
m_i.set_data(data=data, x="lon", y="lat", crs=4326)
m_i.plot_map()
m_i.add_colorbar(extend="neither")
m_i.add_feature.preset.ocean()
m_i.add_feature.preset.land()
# add the coastline to all layers of the maps
m_i.add_feature.preset.coastline(layer="all")
# --------- add a new layer for the second axis
# NOTE: this layer is not visible by default but it can be shown by clicking
# on the layer-switcher utility buttons (bottom center of the figure)
# or by using `m2.show()` or via `m.show_layer("layer 2")`
m21 = m2.new_layer(layer="layer 2")
m21.inherit_data(m2)
m21.set_shape.delaunay_triangulation(mask_radius=0.5)
m21.set_classify_specs(scheme="Quantiles", k=4)
m21.plot_map(cmap="RdYlBu")
m21.add_colorbar(extend="neither")
# add an annotation that is only executed if "layer 2" is active
m21.cb.click.attach.annotate(text="callbacks are layer-sensitive!")
# --------- add some callbacks to indicate the clicked data-point to all maps
for m_i in [m, m2, m3]:
m_i.cb.pick.attach.mark(fc="r", ec="none", buffer=1, permanent=True)
m_i.cb.pick.attach.mark(fc="none", ec="r", lw=1, buffer=5, permanent=True)
m_i.cb.move.attach.mark(fc="none", ec="k", lw=2, buffer=10, permanent=False)
for m_i in [m, m2, m21, m3]:
# --------- rotate the ticks of the colorbars
m_i.colorbar.ax_cb.tick_params(rotation=90, labelsize=8)
# add logos
m_i.add_logo(size=0.05)
# add an annotation-callback to the second map
m2.cb.pick.attach.annotate(text="the closest point is here!", zorder=99)
# share click & pick-events between all Maps-objects of the MapsGrid
m.cb.move.share_events(m2, m3)
m.cb.pick.share_events(m2, m3)
# --------- add a layer-selector widget
m.util.layer_selector(ncol=2, loc="lower center", draggable=False)
m.apply_layout(
{
"figsize": [11.0, 5.0],
"0_map": [0.015, 0.44, 0.3125, 0.34375],
"1_map": [0.35151, 0.363, 0.32698, 0.50973],
"2_map": [0.705, 0.44, 0.2875, 0.37872],
"3_cb": [0.05522, 0.0825, 0.2625, 0.2805],
"3_cb_histogram_size": 0.8,
"4_cb": [0.33625, 0.11, 0.3525, 0.2],
"4_cb_histogram_size": 0.8,
"5_cb": [0.72022, 0.0825, 0.2625, 0.2805],
"5_cb_histogram_size": 0.8,
"7_logo": [0.2725, 0.451, 0.05, 0.04538],
"8_logo": [0.625, 0.3795, 0.05, 0.04538],
"9_logo": [0.625, 0.3795, 0.05, 0.04538],
"10_logo": [0.93864, 0.451, 0.05, 0.04538],
}
)
๐บ Customize the appearance of the plot๏
use
m.set_plot_specs()
to set the general appearance of the plotafter creating the plot, you can access individual objects via
m.figure.<...>
โฆ most importantly:f
: the matplotlib figureax
,ax_cb
,ax_cb_plot
: the axes used for plotting the map, colorbar and histogramgridspec
,cb_gridspec
: the matplotlib GridSpec instances for the plot and the colorbarcoll
: the collection representing the data on the map
# EOmaps example 3: Customize the appearance of the plot
from eomaps import Maps
import pandas as pd
import numpy as np
# ----------- create some example-data
lon, lat = np.meshgrid(np.arange(-30, 60, 0.25), np.arange(30, 60, 0.3))
data = pd.DataFrame(
dict(lon=lon.flat, lat=lat.flat, data_variable=np.sqrt(lon**2 + lat**2).flat)
)
data = data.sample(3000) # take 3000 random datapoints from the dataset
# ------------------------------------
m = Maps(crs=3857, figsize=(9, 5))
m.text(0.5, 0.97, "What a nice figure", fontsize=12)
m.add_feature.preset.ocean(fc="lightsteelblue")
m.add_feature.preset.coastline(lw=0.25)
m.set_data(data=data, x="lon", y="lat", crs=4326)
m.set_shape.geod_circles(radius=30000) # plot geodesic-circles with 30 km radius
m.set_classify_specs(
scheme="UserDefined", bins=[35, 36, 37, 38, 45, 46, 47, 48, 55, 56, 57, 58]
)
m.plot_map(
edgecolor="k", # give shapes a black edgecolor
linewidth=0.5, # with a linewidth of 0.5
cmap="RdYlBu", # use a red-yellow-blue colormap
vmin=35, # map colors to values between 35 and 60
vmax=60,
alpha=0.75, # add some transparency
)
# add a colorbar
m.add_colorbar(
label="some parameter",
hist_bins="bins",
hist_size=1,
hist_kwargs=dict(density=True),
)
# add a y-label to the histogram
m.colorbar.ax_cb_plot.set_ylabel("The Y label")
# add a logo to the plot
m.add_logo()
m.apply_layout(
{
"figsize": [9.0, 5.0],
"0_map": [0.10154, 0.2475, 0.79692, 0.6975],
"1_cb": [0.20125, 0.0675, 0.6625, 0.135],
"1_cb_histogram_size": 1,
"2_logo": [0.87501, 0.09, 0.09999, 0.07425],
}
)
๐ธ Turn your maps into powerful widgets๏
Callback functions can easily be attached to the plot to turn it into an interactive plot-widget!
- thereโs a nice list of (customizeable) pre-defined callbacks accessible via:
m.cb.click
,m.cb.pick
,m.cb.keypress
andm.cb.dynamic
use
annotate
(andclear_annotations
) to create text-annotationsuse
mark
(andclear_markers
) to add markersuse
peek_layer
(andswitch_layer
) to compare multiple layers of dataโฆ and many more:
plot
,print_to_console
,get_values
,load
โฆ
- โฆ but you can also define a custom one and connect it via
m.cb.click.attach(<my custom function>)
(works also withpick
andkeypress
)!
# EOmaps example 4: Turn your maps into a powerful widgets
# %matplotlib widget
from eomaps import Maps
import pandas as pd
import numpy as np
# create some data
lon, lat = np.meshgrid(np.linspace(-20, 40, 50), np.linspace(30, 60, 50))
data = pd.DataFrame(
dict(lon=lon.flat, lat=lat.flat, data=np.sqrt(lon**2 + lat**2).flat)
)
# --------- initialize a Maps object and plot a basic map
m = Maps(crs=3035, figsize=(10, 8))
m.set_data(data=data, x="lon", y="lat", crs=4326)
m.ax.set_title("A clickable widget!")
m.set_shape.rectangles()
m.set_classify_specs(scheme="EqualInterval", k=5)
m.add_feature.preset.coastline()
m.add_feature.preset.ocean()
m.plot_map()
# add some static text
m.text(
0.66,
0.92,
(
"Left-click: temporary annotations\n"
"Right-click: permanent annotations\n"
"Middle-click: clear permanent annotations"
),
fontsize=10,
horizontalalignment="left",
verticalalignment="top",
color="k",
fontweight="bold",
bbox=dict(facecolor="w", alpha=0.75),
)
# --------- attach pre-defined CALLBACK functions ---------
### add a temporary annotation and a marker if you left-click on a pixel
m.cb.pick.attach.mark(
button=1,
permanent=False,
fc=[0, 0, 0, 0.5],
ec="w",
ls="--",
buffer=2.5,
shape="ellipses",
zorder=1,
)
m.cb.pick.attach.annotate(
button=1,
permanent=False,
bbox=dict(boxstyle="round", fc="w", alpha=0.75),
zorder=999,
)
### save all picked values to a dict accessible via m.cb.get.picked_vals
m.cb.pick.attach.get_values(button=1)
### add a permanent marker if you right-click on a pixel
m.cb.pick.attach.mark(
button=3,
permanent=True,
facecolor=[1, 0, 0, 0.5],
edgecolor="k",
buffer=1,
shape="rectangles",
zorder=1,
)
### add a customized permanent annotation if you right-click on a pixel
def text(m, ID, val, pos, ind):
return f"ID={ID}"
m.cb.pick.attach.annotate(
button=3,
permanent=True,
bbox=dict(boxstyle="round", fc="r"),
text=text,
xytext=(10, 10),
zorder=2, # use zorder=2 to put the annotations on top of the markers
)
### remove all permanent markers and annotations if you middle-click anywhere on the map
m.cb.pick.attach.clear_annotations(button=2)
m.cb.pick.attach.clear_markers(button=2)
# --------- define a custom callback to update some text to the map
# (use a high zorder to draw the texts above all other things)
txt = m.text(
0.5,
0.35,
"You clicked on 0 pixels so far",
fontsize=15,
horizontalalignment="center",
verticalalignment="top",
color="w",
fontweight="bold",
animated=True,
zorder=99,
transform=m.ax.transAxes,
)
txt2 = m.text(
0.18,
0.9,
" lon / lat " + "\n",
fontsize=12,
horizontalalignment="right",
verticalalignment="top",
fontweight="bold",
animated=True,
zorder=99,
transform=m.ax.transAxes,
)
def cb1(m, pos, ID, val, **kwargs):
# update the text that indicates how many pixels we've clicked
nvals = len(m.cb.pick.get.picked_vals["ID"])
txt.set_text(
f"You clicked on {nvals} pixel"
+ ("s" if nvals > 1 else "")
+ "!\n... and the "
+ ("average " if nvals > 1 else "")
+ f"value is {np.mean(m.cb.pick.get.picked_vals['val']):.3f}"
)
# update the list of lon/lat coordinates on the top left of the figure
d = m.data.loc[ID]
lonlat_list = txt2.get_text().splitlines()
if len(lonlat_list) > 10:
lonlat_txt = lonlat_list[0] + "\n" + "\n".join(lonlat_list[-10:]) + "\n"
else:
lonlat_txt = txt2.get_text()
txt2.set_text(lonlat_txt + f"{d['lon']:.2f} / {d['lat']:.2f}" + "\n")
m.cb.pick.attach(cb1, button=1, m=m)
def cb2(m, pos, val, **kwargs):
# plot a marker at the pixel-position
(l,) = m.ax.plot(*pos, marker="*", animated=True)
# add the custom marker to the blit-manager!
m.BM.add_artist(l)
# print the value at the pixel-position
# use a low zorder so the text will be drawn below the temporary annotations
m.text(
pos[0],
pos[1] - 150000,
f"{val:.2f}",
horizontalalignment="center",
verticalalignment="bottom",
color=l.get_color(),
zorder=1,
transform=m.ax.transData,
)
m.cb.pick.attach(cb2, button=3, m=m)
# add a "target-indicator" on mouse-movement
m.cb.move.attach.mark(fc="r", ec="none", radius=10000, shape="geod_circles")
m.cb.move.attach.mark(fc="none", ec="r", radius=50000, shape="geod_circles")
# add a colorbar
m.add_colorbar(hist_bins="bins", label="A classified dataset")
m.add_logo()
m.apply_layout(
{
"figsize": [10.0, 8.0],
"0_map": [0.04375, 0.27717, 0.9125, 0.69566],
"1_cb": [0.01, 0.0, 0.98, 0.23377],
"1_cb_histogram_size": 0.8,
"2_logo": [0.825, 0.29688, 0.12, 0.06188],
}
)

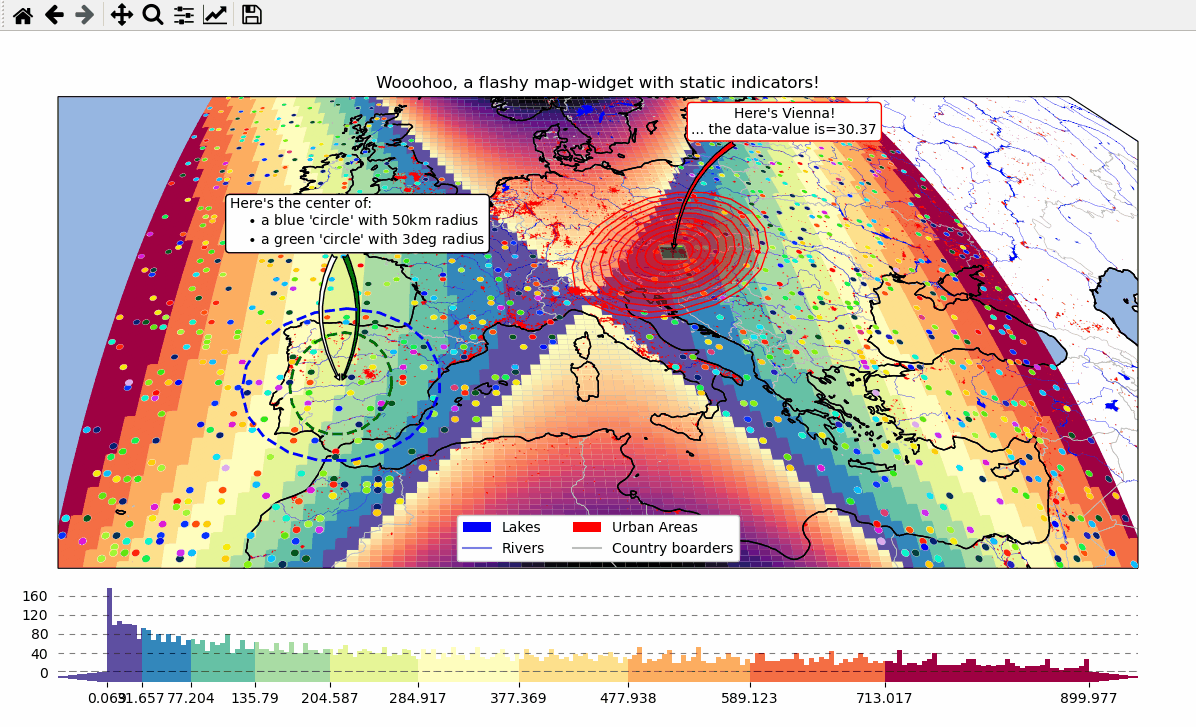

๐ฒ ๐ก๐ณ Add overlays and indicators๏
(โฆ plot-generation might take a bit longer since overlays need to be downloaded first!)
add basic overlays with m.add_overlay
add static annotations / markers with m.add_annotation and m.add_marker
use โconnectedโ Maps-objects to get multiple interactive data-layers!
# EOmaps example 5: Add overlays and indicators
from eomaps import Maps
import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
from matplotlib.patches import Patch
# create some data
lon, lat = np.meshgrid(np.linspace(-20, 40, 100), np.linspace(30, 60, 100))
data = pd.DataFrame(
dict(
lon=lon.flat,
lat=lat.flat,
param=(((lon - lon.mean()) ** 2 - (lat - lat.mean()) ** 2)).flat,
)
)
data_OK = data[data.param >= 0]
data_OK.var = np.sqrt(data_OK.param)
data_mask = data[data.param < 0]
# --------- initialize a Maps object and plot the data
m = Maps(Maps.CRS.Orthographic(), figsize=(10, 7))
m.ax.set_title("Wooohoo, a flashy map-widget with static indicators!")
m.set_data(data=data_OK, x="lon", y="lat", crs=4326)
m.set_shape.rectangles(mesh=True)
m.set_classify_specs(scheme="Quantiles", k=10)
m.plot_map(cmap="Spectral_r")
# ... add an "annotate" callback
cid = m.cb.click.attach.annotate(bbox=dict(alpha=0.75, color="w"))
# - create a new layer and plot another dataset
m2 = m.new_layer()
m2.set_data(data=data_mask, x="lon", y="lat", crs=4326)
m2.set_shape.rectangles()
m2.plot_map(cmap="magma", set_extent=False)
# create a new layer for some dynamically updated data
m3 = m.new_layer()
m3.set_data(data=data_OK.sample(1000), x="lon", y="lat", crs=4326)
m3.set_shape.ellipses(radius=25000, radius_crs=3857)
# plot the map and set dynamic=True to allow continuous updates of the
# collection without re-drawing the background map
m3.plot_map(
cmap="gist_ncar", edgecolor="w", linewidth=0.25, dynamic=True, set_extent=False
)
# define a callback that changes the values of the previously plotted dataset
# NOTE: this is not possible for the shapes: "shade_points" and "shade_raster"!
def callback(m, **kwargs):
# NOTE: Since we change the array of a dynamic collection, the changes will be
# reverted as soon as the background is re-drawn (e.g. on pan/zoom events)
selection = np.random.randint(0, len(m.data), 1000)
m.coll.set_array(data_OK.param.iloc[selection])
# attach the callback (to update the dataset plotted on the Maps object "m3")
m.cb.click.attach(callback, m=m3)
# --------- add some basic overlays from NaturalEarth
m.add_feature.preset.coastline()
m.add_feature.preset.lakes()
m.add_feature.preset.rivers_lake_centerlines()
m.add_feature.preset.countries()
m.add_feature.preset.urban_areas()
# add a customized legend
leg = m.ax.legend(
[
Patch(fc="b"),
plt.Line2D([], [], c="b"),
Patch(fc="r"),
plt.Line2D([], [], c=".75"),
],
["lakes", "rivers", "urban areas", "countries"],
ncol=2,
loc="lower center",
facecolor="w",
framealpha=1,
)
# add the legend as artist to keep it on top
m.BM.add_artist(leg)
# --------- add some fancy (static) indicators for selected pixels
mark_id = 6060
for buffer in np.linspace(1, 5, 10):
m.add_marker(
ID=mark_id,
shape="ellipses",
radius="pixel",
fc=(1, 0, 0, 0.1),
ec="r",
buffer=buffer * 5,
n=100, # use 100 points to represet the ellipses
)
m.add_marker(
ID=mark_id, shape="rectangles", radius="pixel", fc="g", ec="y", buffer=3, alpha=0.5
)
m.add_marker(
ID=mark_id, shape="ellipses", radius="pixel", fc="k", ec="none", buffer=0.2
)
m.add_annotation(
ID=mark_id,
text=f"Here's Vienna!\n... the data-value is={m.data.param.loc[mark_id]:.2f}",
xytext=(80, 70),
textcoords="offset points",
bbox=dict(boxstyle="round", fc="w", ec="r"),
horizontalalignment="center",
arrowprops=dict(arrowstyle="fancy", facecolor="r", connectionstyle="arc3,rad=0.35"),
)
mark_id = 3324
m.add_marker(ID=mark_id, shape="ellipses", radius=3, fc="none", ec="g", ls="--", lw=2)
m.add_annotation(
ID=mark_id,
text="",
xytext=(0, 98),
textcoords="offset points",
arrowprops=dict(
arrowstyle="fancy", facecolor="g", connectionstyle="arc3,rad=-0.25"
),
)
m.add_marker(
ID=mark_id,
shape="geod_circles",
radius=500000,
radius_crs=3857,
fc="none",
ec="b",
ls="--",
lw=2,
)
m.add_annotation(
ID=mark_id,
text=(
"Here's the center of:\n"
+ " $\\bullet$ a blue 'circle' with 50km radius\n"
+ " $\\bullet$ a green 'circle' with 3deg radius"
),
xytext=(-80, 100),
textcoords="offset points",
bbox=dict(boxstyle="round", fc="w", ec="k"),
horizontalalignment="left",
arrowprops=dict(arrowstyle="fancy", facecolor="w", connectionstyle="arc3,rad=0.35"),
)
cb = m.add_colorbar(label="The Data", tick_precision=1)
m.add_logo()
- The data displayed in the above gif is taken from:
NaturalEarth (https://www.naturalearthdata.com/)

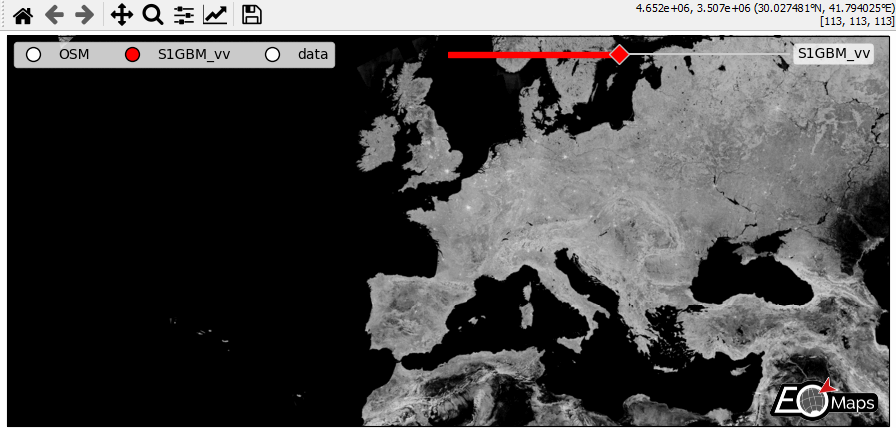

๐ฐ WebMap services and layer-switching๏
add WebMap services using
m.add_wms
andm.add_wmts
compare different data-layers and WebMap services using
m.cb.click.peek_layer
andm.cb.keypress.switch_layer
# EOmaps example 6: WebMap services and layer-switching
from eomaps import Maps
import numpy as np
import pandas as pd
# ------ create some data --------
lon, lat = np.meshgrid(np.linspace(-50, 50, 150), np.linspace(30, 60, 150))
data = pd.DataFrame(
dict(lon=lon.flat, lat=lat.flat, data=np.sqrt(lon**2 + lat**2).flat)
)
# --------------------------------
m = Maps(Maps.CRS.GOOGLE_MERCATOR, layer="S1GBM_vv", figsize=(9, 4))
# set the crs to GOOGLE_MERCATOR to avoid reprojecting the WebMap data
# (makes it a lot faster and it will also look much nicer!)
# add S1GBM WebMap to the layer of this Maps-object
m.add_wms.S1GBM.add_layer.vv()
# add OpenStreetMap on the currently invisible layer (OSM)
m.add_wms.OpenStreetMap.add_layer.default(layer="OSM")
# create a new layer named "data" and plot some data
m2 = m.new_layer(layer="data")
m2.set_data(data=data.sample(5000), x="lon", y="lat", crs=4326)
m2.set_shape.geod_circles(radius=20000)
m2.plot_map()
# -------- CALLBACKS ----------
# (use m.all to execute independent of the visible layer)
# on a left-click, show layers ("data", "OSM") in a rectangle
m.all.cb.click.attach.peek_layer(layer="OSM|data", how=0.2)
# on a right-click, "swipe" the layers ("S1GBM_vv" and "data") from the left
m.all.cb.click.attach.peek_layer(
layer="S1GBM_vv|data",
how="left",
button=3,
)
# switch between the layers by pressing the keys 0, 1 and 2
m.all.cb.keypress.attach.switch_layer(layer="S1GBM_vv", key="0")
m.all.cb.keypress.attach.switch_layer(layer="OSM", key="1")
m.all.cb.keypress.attach.switch_layer(layer="data", key="2")
# add a pick callback that is only executed if the "data" layer is visible
m2.cb.pick.attach.annotate(zorder=100) # use a high zorder to put it on top
# ------ UTILITY WIDGETS --------
# add a clickable widget to switch between layers
m.util.layer_selector(
loc="upper left",
ncol=3,
bbox_to_anchor=(0.01, 0.99),
layers=["OSM", "S1GBM_vv", "data"],
)
# add a slider to switch between layers
s = m.util.layer_slider(
pos=(0.5, 0.93, 0.38, 0.025),
color="r",
handle_style=dict(facecolor="r"),
txt_patch_props=dict(fc="w", ec="none", alpha=0.75, boxstyle="round, pad=.25"),
)
# explicitly set the layers you want to use in the slider
# (Note: you can also use combinations of multiple existing layers!)
s.set_layers(["OSM", "S1GBM_vv", "data", "OSM|data{0.5}"])
# ------------------------------
m.add_logo()
m.apply_layout(
{
"figsize": [9.0, 4.0],
"0_map": [0.00625, 0.01038, 0.9875, 0.97924],
"1_slider": [0.45, 0.93, 0.38, 0.025],
"2_logo": [0.865, 0.02812, 0.12, 0.11138],
}
)
# fetch all layers before startup so that they are already cached
m.fetch_layers()
- The data displayed in the above gif is taken from:
Sentinel-1 Global Backscatter Model (https://researchdata.tuwien.ac.at/records/n2d1v-gqb91)
OpenStreetMap hosted by Mundialis (https://www.mundialis.de/en/ows-mundialis/)

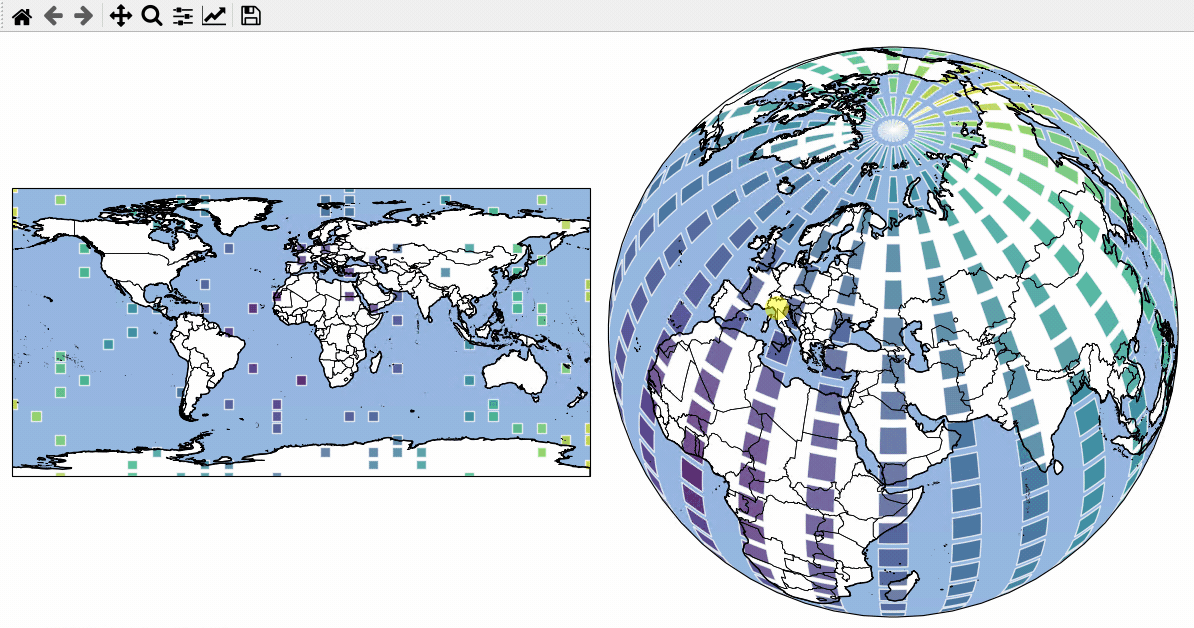

๐ Using geopandas - interactive shapes!๏
- geopandas.GeoDataFrames can be used to assign callbacks with EOmaps.
- to make a GeoDataFrame pickable, first use
m.add_gdf(picker_name="MyPicker")
now you can assign callbacks via
m.cb.MyPicker.attach...
just as you would do with the ordinarym.cb.click
orm.cb.pick
callbacks
- to make a GeoDataFrame pickable, first use
Note
For large datasets that are visualized as simple rectangles, ellipses etc.
it is recommended to use EOmaps to visualize the data with m.plot_map()
since the generation of the plot and the identification of the picked pixels
will be much faster!
If the GeoDataFrame contains multiple different geometry types (e.g. Lines, Patches, etc.) a unique pick-collection will be assigned for each of the geometry types!
# EOmaps example 7: Using geopandas - interactive shapes!
from eomaps import Maps
import pandas as pd
import numpy as np
# geopandas is used internally... the import is just here to show that!
import geopandas as gpd
# ----------- create some example-data
lon, lat = np.meshgrid(np.linspace(-180, 180, 25), np.linspace(-90, 90, 25))
data = pd.DataFrame(
dict(lon=lon.flat, lat=lat.flat, data=np.sqrt(lon**2 + lat**2).flat)
)
# setup 2 maps with different projections next to each other
m = Maps(ax=121, crs=4326, figsize=(10, 5))
m2 = Maps(f=m.f, ax=122, crs=Maps.CRS.Orthographic(45, 45))
# assign data to the Maps objects
m.set_data(data=data.sample(100), x="lon", y="lat", crs=4326, parameter="data")
m2.set_data(data=data, x="lon", y="lat", crs=4326)
# fetch data (incl. metadata) for the "admin_0_countries" NaturalEarth feature
countries = m.add_feature.cultural.admin_0_countries.get_gdf(scale=50)
for m_i in [m, m2]:
m_i.add_feature.preset.ocean()
m_i.add_gdf(
countries,
picker_name="countries",
pick_method="contains",
val_key="NAME",
fc="none",
ec="k",
lw=0.5,
)
m_i.set_shape.rectangles(radius=3, radius_crs=4326)
m_i.plot_map(alpha=0.75, ec=(1, 1, 1, 0.5))
# attach a callback to highlite the rectangles
m_i.cb.pick.attach.mark(shape="rectangles", fc="none", ec="b", lw=2)
# attach a callback to highlite the countries and indicate the names
picker = m_i.cb.pick["countries"]
picker.attach.highlight_geometry(fc="r", ec="k", lw=0.5, alpha=0.5)
picker.attach.annotate(text=lambda val, **kwargs: str(val))
# share pick events between the maps-objects
m.cb.pick.share_events(m2)
m.cb.pick["countries"].share_events(m2)
m.add_logo()
m.apply_layout(
{
"figsize": [10.0, 5.0],
"0_map": [0.005, 0.25114, 0.5, 0.5],
"1_map": [0.5125, 0.0375, 0.475, 0.95],
"2_logo": [0.875, 0.01, 0.12, 0.09901],
}
)
- The data displayed in the above gif is taken from:
NaturalEarth (https://www.naturalearthdata.com/)
๐ Adding scalebars - what about distances?๏
- EOmaps has a nice customizable scalebar feature!
use
s = m.add_scalebar(lon, lat, azim)
to attach a scalebar to the plotonce the scalebar is there, you can drag it around and change its properties via
s.set_position
,s.set_scale_props()
,s.set_label_props()
ands.set_patch_props()
Note
You can also simply drag the scalebar with the mouse!
LEFT-click on it to make it interactive!
RIGHT-click anywhere on the map to make it fixed again
There are also some useful keyboard shortcuts you can use while the scalebar is interactive
use
+
/-
to rotate the scalebaruse
alt
++
/-
to set the text-offsetuse the
arrow-keys
to increase the frame-widthsuse
alt
+arrow-keys
to decrease the frame-widthsuse
delete
to remove the scalebar from the plot
# EOmaps example 8: Adding scalebars - what about distances?
from eomaps import Maps
m = Maps(figsize=(9, 5))
m.add_feature.preset.ocean(ec="k", scale="110m")
s1 = m.add_scalebar((0, 45), 30, scale=10e5, n=8, preset="kr")
s2 = m.add_scalebar(
(-11, -50),
-45,
scale=5e5,
n=10,
scale_props=dict(width=5, colors=("k", ".25", ".5", ".75", ".95")),
patch_props=dict(offsets=(1, 1.4, 1, 1), fc=(0.7, 0.8, 0.3, 1)),
label_props=dict(offset=0.5, scale=1.4, every=5, weight="bold", family="Calibri"),
)
s3 = m.add_scalebar(
(-120, -20),
0,
scale=5e5,
n=10,
scale_props=dict(width=3, colors=(*["w", "darkred"] * 2, *["w"] * 5, "darkred")),
patch_props=dict(fc=(0.25, 0.25, 0.25, 0.8), ec="k", lw=0.5, offsets=(1, 1, 1, 2)),
label_props=dict(
every=(1, 4, 10), color="w", rotation=45, weight="bold", family="Impact"
),
line_props=dict(color="w"),
)
# it's also possible to update the properties of an existing scalebar
# via the setter-functions!
s4 = m.add_scalebar(n=10, preset="bw")
s4.set_scale_props(width=3, colors=[(1, 0.6, 0), (0, 0.5, 0.5)])
s4.set_label_props(every=2)
# NOTE that the last scalebar (s4) is automatically re-scaled and re-positioned
# on zoom events (the default if you don't provide an explicit scale & position)!
m.add_logo()
- The data displayed in the above gif is taken from:
NaturalEarth (https://www.naturalearthdata.com/)
๐ Data analysis widgets - Interacting with a database๏
Callback-functions can be used to trigger updates on other plots. This example shows how to use EOmaps to analyze a database that is associated with a map.
create a grid of
Maps
objects and ordinary matplotlib axes viaMapsGrid
define a custom callback to update the plots if you click on the map
# EOmaps example 9: Data analysis widgets - Interacting with a database
from eomaps import Maps
import pandas as pd
import numpy as np
# ============== create a random database =============
length, Nlon, Nlat = 1000, 100, 50
lonmin, lonmax, latmin, latmax = -70, 175, 0, 75
database = np.full((Nlon * Nlat, length), np.nan)
for i in range(Nlon * Nlat):
size = np.random.randint(1, length)
x = np.random.normal(loc=np.random.rand(), scale=np.random.rand(), size=size)
np.put(database, range(i * length, i * length + size), x)
lon, lat = np.meshgrid(
np.linspace(lonmin, lonmax, Nlon), np.linspace(latmin, latmax, Nlat)
)
IDs = [f"point_{i}" for i in range(Nlon * Nlat)]
database = pd.DataFrame(database, index=IDs)
coords = pd.DataFrame(dict(lon=lon.flat, lat=lat.flat), index=IDs)
# -------- calculate the number of values in each dataset
# (e.g. the data actually shown on the map)
data = pd.DataFrame(dict(count=database.count(axis=1), **coords))
# =====================================================
# initialize a map on top
m = Maps(ax=211)
m.add_feature.preset.ocean()
m.add_feature.preset.coastline()
# initialize 2 matplotlib plot-axes below the map
ax_left = m.f.add_subplot(223)
ax_left.set_ylabel("data-values")
ax_left.set_xlabel("data-index")
ax_right = m.f.add_subplot(224)
ax_right.set_ylabel("data-values")
ax_right.set_xlabel("histogram count")
ax_left.sharey(ax_right)
# -------- assign data to the map and plot it
m.set_data(data=data, x="lon", y="lat", crs=4326)
m.set_classify_specs(
scheme=Maps.CLASSIFIERS.UserDefined,
bins=[50, 100, 200, 400, 800],
)
m.set_shape.ellipses(radius=0.5)
m.plot_map()
# -------- define a custom callback function to update the plots
def update_plots(ID, **kwargs):
# get the data
x = database.loc[ID].dropna()
# plot the lines and histograms
(l,) = ax_left.plot(x, lw=0.5, marker=".", c="C0")
cnt, val, art = ax_right.hist(x.values, bins=50, orientation="horizontal", fc="C0")
# re-compute axis limits based on the new artists
ax_left.relim()
ax_right.relim()
ax_left.autoscale()
ax_right.autoscale()
# add all artists as "temporary pick artists" so that they
# are removed when the next datapoint is selected
for a in [l, *art]:
m.cb.pick.add_temporary_artist(a)
# attach the custom callback (and some pre-defined callbacks)
m.cb.pick.attach(update_plots)
m.cb.pick.attach.annotate()
m.cb.pick.attach.mark(permanent=False, buffer=1, fc="none", ec="r")
m.cb.pick.attach.mark(permanent=False, buffer=2, fc="none", ec="r", ls=":")
# add a colorbar
m.add_colorbar(0.25, label="Number of observations")
m.colorbar.ax_cb_plot.tick_params(labelsize=6)
# add a logo
m.add_logo()
m.apply_layout(
{
"figsize": [6.4, 4.8],
"0_map": [0.05625, 0.60894, 0.8875, 0.36594],
"1_": [0.12326, 0.11123, 0.35, 0.31667],
"2_": [0.58674, 0.11123, 0.35, 0.31667],
"3_cb": [0.12, 0.51667, 0.82, 0.06166],
"3_cb_histogram_size": 0.8,
"4_logo": [0.8125, 0.62333, 0.1212, 0.06667],
}
)
๐งฎ Select 1D slices of a 2D dataset๏
Use custom callback functions to perform arbitrary tasks on the data when clicking on the map.
Identify clicked row/col in a 2D dataset
Highlight the found row and column using a new layer
(requires EOmaps >= v3.1.4)
from eomaps import Maps
import numpy as np
# setup some random 2D data
lon, lat = np.meshgrid(np.linspace(-180, 180, 200), np.linspace(-90, 90, 100))
data = np.sqrt(lon**2 + lat**2) + np.random.normal(size=lat.shape) ** 2 * 20
name = "some parameter"
# ----------------------
# create a new map spanning the left row of a 2x2 grid
m = Maps(crs=Maps.CRS.InterruptedGoodeHomolosine(), ax=(2, 2, (1, 3)), figsize=(8, 5))
m.add_feature.preset.coastline()
m.set_data(data, lon, lat, parameter=name)
m.set_classify_specs(Maps.CLASSIFIERS.NaturalBreaks, k=5)
m.plot_map()
# create 2 ordinary matplotlib axes to show the selected data
ax_row = m.f.add_subplot(222) # 2x2 grid, top right
ax_row.set_xlabel("Longitude")
ax_row.set_ylabel(name)
ax_row.set_xlim(-185, 185)
ax_row.set_ylim(data.min(), data.max())
ax_col = m.f.add_subplot(224) # 2x2 grid, bottom right
ax_col.set_xlabel("Latitude")
ax_col.set_ylabel(name)
ax_col.set_xlim(-92.5, 92.5)
ax_col.set_ylim(data.min(), data.max())
# add a colorbar for the data
m.add_colorbar(label=name)
m.colorbar.ax_cb.tick_params(rotation=90) # rotate colorbar ticks 90ยฐ
# add new layers to plot row- and column data
m2 = m.new_layer()
m2.set_shape.ellipses(m.shape.radius)
m3 = m.new_layer()
m3.set_shape.ellipses(m.shape.radius)
# define a custom callback to indicate the clicked row/column
def cb(m, ind, ID, *args, **kwargs):
# get row and column from the data
# NOTE: "ind" always represents the index of the flattened array!
r, c = np.unravel_index(ind, m.data.shape)
# ---- highlight the picked column
# use "dynamic=True" to avoid re-drawing the background on each pick
# use "set_extent=False" to avoid resetting the plot extent on each draw
m2.set_data(m.data_specs.data[:, c], m.data_specs.x[:, c], m.data_specs.y[:, c])
m2.plot_map(fc="none", ec="b", set_extent=False, dynamic=True, verbose=0)
# ---- highlight the picked row
m3.set_data(m.data_specs.data[r, :], m.data_specs.x[r, :], m.data_specs.y[r, :])
m3.plot_map(fc="none", ec="r", set_extent=False, dynamic=True, verbose=0)
# ---- plot the data for the selected column
(art0,) = ax_col.plot(m.data_specs.y[:, c], m.data_specs.data[:, c], c="b")
(art01,) = ax_col.plot(
m.data_specs.y[r, c],
m.data_specs.data[r, c],
c="k",
marker="o",
markerfacecolor="none",
ms=10,
)
# ---- plot the data for the selected row
(art1,) = ax_row.plot(m.data_specs.x[r, :], m.data_specs.data[r, :], c="r")
(art11,) = ax_row.plot(
m.data_specs.x[r, c],
m.data_specs.data[r, c],
c="k",
marker="o",
markerfacecolor="none",
ms=10,
)
# make all artists temporary (e.g. remove them on next pick)
# "m2.coll" represents the collection created by "m2.plot_map()"
for a in [art0, art01, art1, art11, m2.coll, m3.coll]:
m.cb.pick.add_temporary_artist(a)
# attach the custom callback
m.cb.pick.attach(cb, m=m)
# ---- add a pick-annotation with a custom text
def text(ind, val, **kwargs):
r, c = np.unravel_index(ind, m.data.shape)
return (
f"row/col = {r}/{c}\n"
f"lon/lat = {m.data_specs.x[r, c]:.2f}/{m.data_specs.y[r, c]:.2f}\n"
f"val = {val:.2f}"
)
m.cb.pick.attach.annotate(text=text, fontsize=7)
# apply a previously arranged layout (e.g. check "layout-editor" in the docs!)
m.apply_layout(
{
"figsize": [8, 5],
"0_map": [0.015, 0.49253, 0.51, 0.35361],
"1_": [0.60375, 0.592, 0.38, 0.392],
"2_": [0.60375, 0.096, 0.38, 0.392],
"3_cb": [0.025, 0.144, 0.485, 0.28],
"3_cb_histogram_size": 0.8,
}
)
๐ฌ Inset-maps - get a zoomed-in view on selected areas๏
Quickly create nice inset-maps to show details for specific regions.
the location and extent of the inset can be defined in any given crs
(or as a geodesic circle with a radius defined in meters)
the inset-map can have a different crs than the โparentโ map
(requires EOmaps >= v4.1)
from eomaps import Maps
import numpy as np
m = Maps(Maps.CRS.Orthographic())
m.add_feature.preset.coastline() # add some coastlines
# ---------- create a new inset-map
# showing a 15 degree rectangle around the xy-point
m2 = m.new_inset_map(
xy=(5, 45),
xy_crs=4326,
shape="rectangles",
radius=15,
plot_position=(0.75, 0.4),
plot_size=0.5,
inset_crs=4326,
boundary=dict(ec="r", lw=1),
indicate_extent=dict(fc=(1, 0, 0, 0.25)),
)
# populate the inset with some more detailed features
m2.add_feature.preset.coastline()
m2.add_feature.preset.ocean()
m2.add_feature.preset.land()
m2.add_feature.preset.countries()
m2.add_feature.preset.urban_areas()
# ---------- create another inset-map
# showing a 400km circle around the xy-point
m3 = m.new_inset_map(
xy=(5, 45),
xy_crs=4326,
shape="geod_circles",
radius=400000,
plot_position=(0.25, 0.4),
plot_size=0.5,
inset_crs=3035,
boundary=dict(ec="g", lw=2),
indicate_extent=dict(fc=(0, 1, 0, 0.25)),
)
# populate the inset with some features
m3.add_wms.OpenStreetMap.add_layer.stamen_terrain_background()
# print some data on all of the maps
x, y = np.meshgrid(np.linspace(-50, 50, 100), np.linspace(-30, 70, 100))
data = x + y
for m_i in [m, m2, m3]:
m_i.set_data(data, x, y, crs=4326)
m.set_classify.Quantiles(k=4)
m.plot_map(alpha=0.5, ec="none", set_extent=False)
m2.inherit_classification(m)
m3.inherit_classification(m)
m2.set_shape.ellipses(np.mean(m.shape.radius) / 2)
m2.plot_map(alpha=0.75, ec="k", lw=0.5, set_extent=False)
m3.set_shape.ellipses(np.mean(m.shape.radius) / 2)
m3.plot_map(alpha=1, ec="k", lw=0.5, set_extent=False)
# add an annotation for the second datapoint to the inset-map
m3.add_annotation(ID=1, xytext=(-120, 80))
# indicate the extent of the second inset on the first inset
m3.indicate_inset_extent(m2, ec="g", lw=2, fc="g", alpha=0.5, zorder=0)
# add some additional text to the inset-maps
for m_i, txt, color in zip([m2, m3], ["epsg: 4326", "epsg: 3035"], ["r", "g"]):
txt = m_i.ax.text(
0.5,
0,
txt,
transform=m_i.ax.transAxes,
horizontalalignment="center",
bbox=dict(facecolor=color),
)
# add the text-objects as artists to the blit-manager
m_i.BM.add_artist(txt)
m3.add_colorbar(hist_bins=20, margin=dict(bottom=-0.2), label="some parameter")
# move the inset map (and the colorbar) to a different location
m3.set_inset_position(x=0.3)
# share pick events
for mi in [m, m2, m3]:
mi.cb.pick.attach.annotate(text=lambda ID, val, **kwargs: f"ID={ID}\nval={val:.2f}")
m.cb.pick.share_events(m2, m3)
m.apply_layout(
{
"figsize": [6.4, 4.8],
"0_map": [0.1625, 0.09, 0.675, 0.9],
"1_inset_map": [0.5625, 0.15, 0.375, 0.5],
"2_inset_map": [0.0875, 0.33338, 0.325, 0.43225],
"3_cb": [0.0875, 0.12, 0.4375, 0.12987],
"3_cb_histogram_size": 0.8,
}
)
๐ฒ Lines and Annotations๏
Draw lines defined by a set of anchor-points and add some nice annotations.
Connect the anchor-points via:
geodesic lines
straight lines
reprojected straight lines defined in a given projection
(requires EOmaps >= v4.3.1)
# EOmaps example : drawing lines on a map
from eomaps import Maps
m = Maps(Maps.CRS.Mollweide(), figsize=(8, 4))
m.add_feature.preset.ocean()
m.add_feature.preset.land()
# get a few points for some basic lines
l1 = [(-135, 50), (45, 45), (123, 76)]
l2 = [(-120, -24), (-160, 34), (-153, -60), (-128, -82), (-24, -25), (-16, 35)]
# define annotation-styles
bbox_style1 = dict(
xy_crs=4326,
fontsize=8,
bbox=dict(boxstyle="circle,pad=0.25", ec="b", fc="b", alpha=0.25),
)
bbox_style2 = dict(
xy_crs=4326,
fontsize=6,
bbox=dict(boxstyle="round,pad=0.25", ec="k", fc="r", alpha=0.5),
horizontalalignment="center",
)
# -------- draw a line with 100 intermediate points per line-segment,
# mark anchor-points with "o" and every 10th intermediate point with "x"
m.add_line(l1, c="b", lw=0.5, marker="x", ms=3, markevery=10, n=100, mark_points="bo")
m.add_annotation(xy=l1[0], text="start", xytext=(10, -20), **bbox_style1)
m.add_annotation(xy=l1[-1], text="end", xytext=(10, -30), **bbox_style1)
# -------- draw a line with ~1km spacing between intermediate points per line-segment,
# mark anchor-points with "*" and every 1000th intermediate point with "."
d_inter, d_tot = m.add_line(
l2,
c="r",
lw=0.5,
marker=".",
del_s=1000,
markevery=1000,
mark_points=dict(marker="*", fc="darkred", ec="k", lw=0.25, s=60, zorder=99),
)
for i, (point, distance) in enumerate(zip(l2[:-1], d_tot)):
if i == 0:
t = "start"
else:
t = f"segment {i}"
m.add_annotation(
xy=point, text=f"{t}\n{distance/1000:.0f}km", xytext=(10, 20), **bbox_style2
)
m.add_annotation(xy=l2[-1], text="end", xytext=(10, 20), **bbox_style2)
# -------- show the effect of different connection-styles
l3 = [(50, 20), (120, 20), (120, -30), (50, -30), (50, 20)]
l4 = [(55, 15), (115, 15), (115, -25), (55, -25), (55, 15)]
l5 = [(60, 10), (110, 10), (110, -20), (60, -20), (60, 10)]
# -------- connect points via straight lines
m.add_line(l3, lw=0.75, ls="--", c="k", mark_points="k.")
m.add_annotation(
xy=l3[1],
fontsize=6,
xy_crs=4326,
text="geodesic lines",
xytext=(20, 10),
bbox=dict(ec="k", fc="w", ls="--"),
)
# -------- connect points via lines that are straight in a given projection
m.add_line(
l4,
connect="straight_crs",
xy_crs=4326,
lw=1,
c="purple",
mark_points=dict(fc="purple", marker="."),
)
m.add_annotation(
xy=l4[1],
fontsize=6,
xy_crs=4326,
text="straight lines\nin epsg 4326",
xytext=(21, -10),
bbox=dict(ec="purple", fc="w"),
)
# -------- connect points via geodesic lines
m.add_line(l5, connect="straight", lw=0.5, c="r", mark_points="r.")
m.add_annotation(
xy=l5[1],
fontsize=6,
xy_crs=4326,
text="straight lines",
xytext=(24, -20),
bbox=dict(ec="r", fc="w"),
)
m.add_logo()

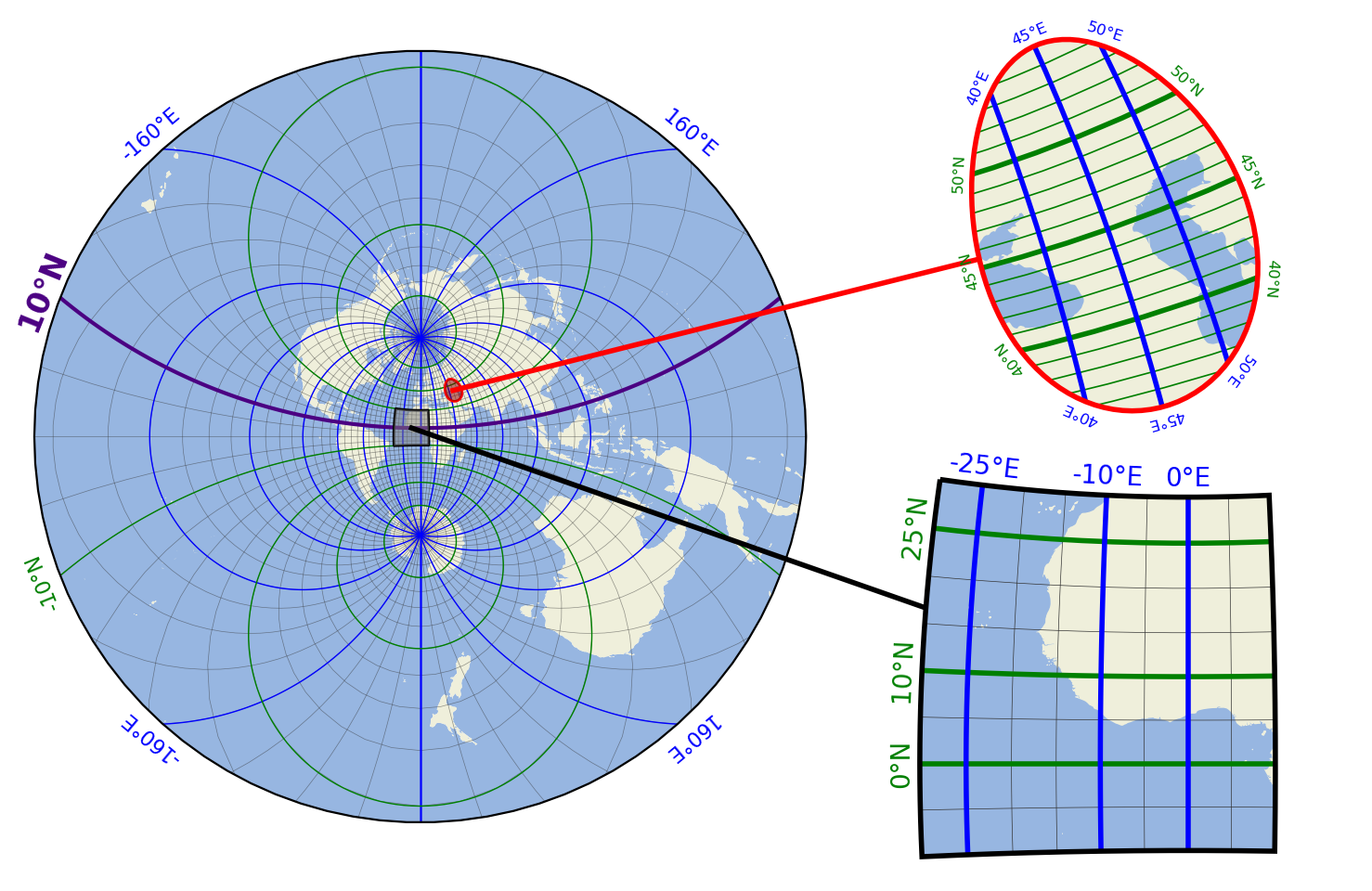

๐ Gridlines and Grid Labels๏
Draw custom grids and add grid labels.
(requires EOmaps >= v6.5)
# EOmaps Example: Customized gridlines
from eomaps import Maps
m = Maps(crs=Maps.CRS.Stereographic())
m.subplots_adjust(left=0.1, right=0.9, bottom=0.1, top=0.9)
m.add_feature.preset.ocean()
m.add_feature.preset.land()
# draw a regular 5 degree grid
m.add_gridlines(5, lw=0.25, alpha=0.5)
# draw a grid with 20 degree longitude spacing and add labels
g = m.add_gridlines((20, None), c="b", n=500)
g.add_labels(offset=10, fontsize=8, c="b")
# draw a grid with 20 degree latitude spacing, add labels and exclude the 10ยฐ tick
g = m.add_gridlines((None, 20), c="g", n=500)
g.add_labels(where="l", offset=10, fontsize=8, c="g", exclude=[10])
# explicitly highlight 10ยฐN line and add a label on one side of the map
g = m.add_gridlines((None, [10]), c="indigo", n=500, lw=1.5)
g.add_labels(where="l", fontsize=12, fontweight="bold", c="indigo")
# ----------------- first inset-map
mi = m.new_inset_map(xy=(45, 45), radius=10, inset_crs=m.crs_plot)
mi.add_feature.preset.ocean()
mi.add_feature.preset.land()
# draw a regular 1 degree grid
g = mi.add_gridlines((None, 1), c="g", lw=0.6)
# add some specific latitude gridlines and add labels
g = mi.add_gridlines((None, [40, 45, 50]), c="g", lw=2)
g.add_labels(where="lr", offset=7, fontsize=6, c="g")
# add some specific longitude gridlines and add labels
g = mi.add_gridlines(([40, 45, 50], None), c="b", lw=2)
g.add_labels(where="tb", offset=7, fontsize=6, c="b")
mi.indicate_inset_extent(m, fc="darkred", ec="none", alpha=0.5)
mi.add_indicator_line()
# ----------------- second inset-map
mi = m.new_inset_map(
inset_crs=m.crs_plot,
xy=(-10, 10),
radius=20,
shape="rectangles",
boundary=dict(ec="k"),
)
mi.add_feature.preset.ocean()
mi.add_feature.preset.land()
mi.indicate_inset_extent(m, fc=".5", ec="none", alpha=0.5)
mi.add_indicator_line(c="k")
# draw a regular 1 degree grid
g = mi.add_gridlines(5, lw=0.25)
# add some specific latitude gridlines and add labels
g = mi.add_gridlines((None, [0, 10, 25]), c="g", lw=2)
g.add_labels(where="l", fontsize=10, c="g")
# add some specific longitude gridlines and add labels
g = mi.add_gridlines(([-25, -10, 0], None), c="b", lw=2)
g.add_labels(where="t", fontsize=10, c="b")
m.apply_layout(
{
"figsize": [7.39, 4.8],
"0_map": [0.025, 0.07698, 0.5625, 0.86602],
"1_inset_map": [0.7, 0.53885, 0.225, 0.41681],
"2_inset_map": [0.6625, 0.03849, 0.275, 0.42339],
}
)
